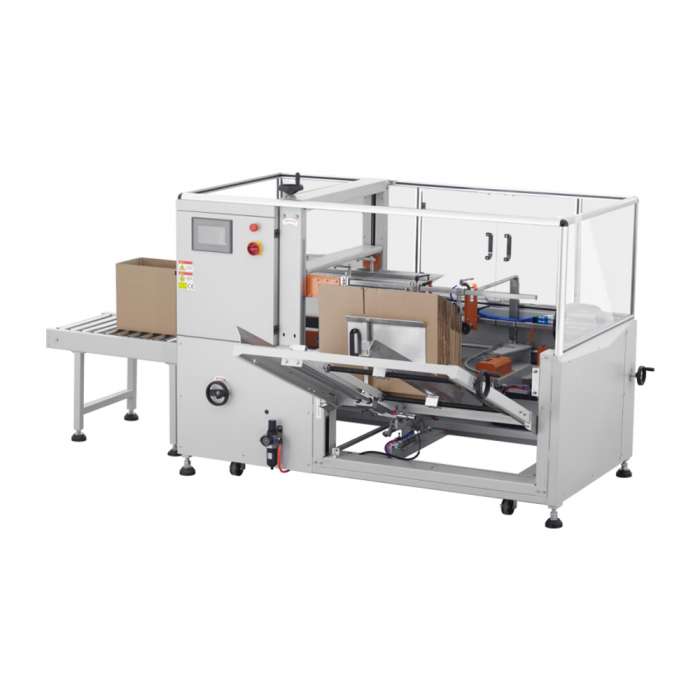

HXP40E Automatic Carton Forming Bottom Sealer

Tag : carton forming machine,carton bottom sealing machine,carton packaging machine
HXP40E Automatic Carton Forming Bottom Sealer streamlines packaging operations through a fully automated process. It automatically draws flat carton blanks from the magazine, forms them into the correct shape, sequentially bottoms and folds the flaps, and finally applies tape to seal the bottom of the carton. The formed and sealed carton is then discharged onto the downstream conveyor, ready for the next packaging stage. This continuous cycle achieves a high-speed output of up to 12 cartons per minute.

Parameter

  • Carton Opening Speed
  • Up to 10-12 cases/min
  • Carton Size
  • L(250-450)×W(150-400)×H(100-400)mm
  • Power Supply
  • 220V 50/60Hz 1 Phase
  • Power
  • 240W
  • Adhesive Tape Width
  • 55-72mm (Choose one type)
  • Carton Storage Quantity
  • 80-100pcs (800-1000mm)
  • Air Consumption
  • 450NL/min
  • Air Compressing
  • 6-8kg/cm³
  • Table Height
  • 620-650 mm
  • Machine dimension
  • 2100×2100×1450mm(L×W×H)
  • Machine Weight
  • 450KG
