Best Automatic Carton Forming Bottom Sealer for Efficient Packaging

Comprehensive Automation from Blank to Sealed Box

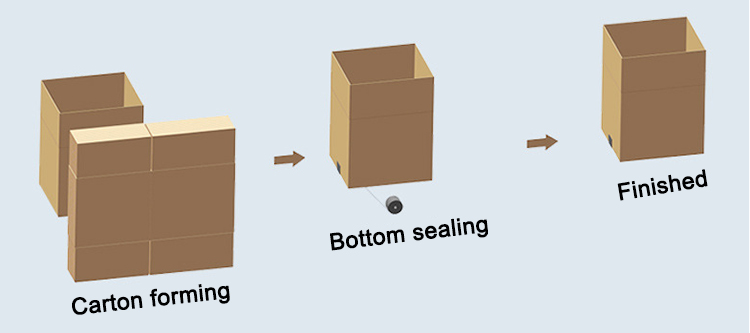

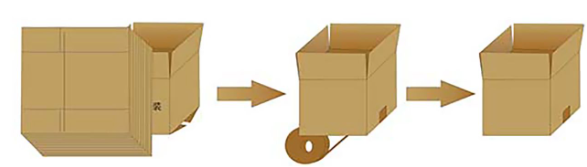

The HXP40E eliminates the human error and physical strain associated with manual box assembly. The process begins with the machine automatically drawing flat carton blanks from its high-capacity magazine. It then forms them into the correct shape, folds the bottom flaps sequentially, and applies a secure tape seal to the base—all in one continuous, fluid motion. The finished carton is then discharged onto your downstream conveyor, ready for product loading without a second of delay.

HXP40E Automatic Carton Forming Bottom Sealer

High Output for Demanding Production Environments

Efficiency is measured by the clock. The HXP40E achieves a steady and reliable output of 10 to 12 cartons per minute. This speed is perfectly balanced to keep up with medium-to-high volume production lines in industries such as e-commerce, food and beverage, and consumer electronics. By automating this foundational step, you ensure a consistent flow of packaging materials, preventing pile-ups and maximizing the throughput of your entire facility.

Versatile Sizing and Large Storage Capacity

Flexibility is key to a future-proof packaging line. The HXP40E accommodates a wide range of carton sizes, with lengths from 250mm to 450mm and heights up to 400mm. To minimize operator intervention, the machine features an extended storage magazine capable of holding 80 to 100 flat blanks (approximately 800-1000mm in length). This allows your team to focus on higher-value tasks rather than constantly refilling the machine, further boosting overall plant efficiency.

Precision Sealing and Structural Integrity

A poorly sealed carton is a liability. The HXP40E utilizes a precision flap-folding mechanism and a high-performance tape application system (supporting 55-72mm tape widths). This ensures that every box is perfectly square and the bottom seal is robust enough to handle heavy loads during transit. The result is a professional, clean-looking package that protects your product and enhances your brand's reputation for quality.

Compact Design and Seamless Integration

Despite its industrial-grade performance, the HXP40E features a relatively compact footprint (2100×2100mm), making it easy to integrate into existing warehouse layouts. With a table height adjustable between 620mm and 650mm, it aligns perfectly with standard industrial conveyors. Furthermore, its low power consumption of just 240W makes it an eco-friendly and cost-effective choice for long-term 24/7 operation.

Lowering Labor Costs and Enhancing Safety

By shifting from manual assembly to the HXP40E, companies can significantly reduce their labor overhead. More importantly, it eliminates the repetitive motion injuries often associated with manual folding and taping. The HXP40E is built for safety and reliability, featuring a stable 450KG frame that minimizes vibration during high-speed cycles, ensuring a long service life with minimal maintenance requirements.

Step into the Future of Automated Packaging

The HXP40E is more than just a sealer; it is a strategic investment in your supply chain's reliability. Whether you are scaling an e-commerce startup or optimizing a global manufacturing plant, this machine delivers the precision, speed, and durability needed to stay ahead.
