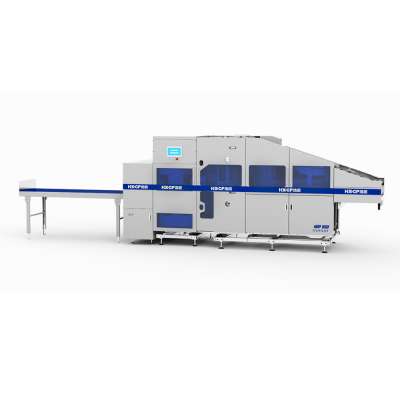

HX500PB1 Digital Perfect Binding Machine

Parameter

• Number of Clamps
• 1

• Max Book Block Size
• 320×320mm

• Min Book Block Size
• 135×105mm

• Max Cover Size
• 320×660mm

• Front Part of Book Clamp Reach
• 350mm

• Rear Part of Book Clamp Reach
• 310mm

• Min Cover Size
• 135×230mm

• Front Part of Book Clamp Reach
• 120mm

• Rear Part of Book Clamp Reach
• 110mm

• Book Block Thickness
• 1-50mm

• Cover Paper Thickness
• 82-302gsm

• Max Cover Stacking Height
• 70mm

• Glue Temperature Range
• 120-180℃(170℃ or below, parameter adjustment by service personnel is required)

• Max Production Speed
• 500 cycles/hour

• Power Supply
• 3 Phase, 400V(converted to 200V via transformer), 50/60Hz

• Machine Dimensions
• 2295×860×1545mm(L×W×H)(without cover table extension)

• Machine Dimensions
• 2430×910×1545mm(L×W×H)(with cover table extension)
