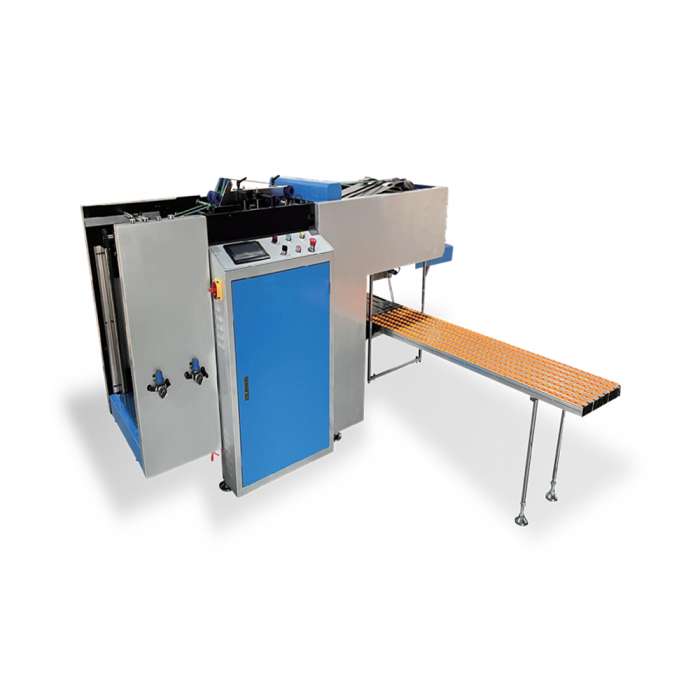

Automatic Punching Machine for Calendar and Notebook

Tag : punching machine,notebook,punching hole,calendar,cover punching machine
Automatic Punching Machine for Calendar and Notebook is designed for paper and board punching for binding applications such as calendars and notebooks. Suitable for paper, grey board, and PP sheets; not for metal materials. Features stepper-driven sheet feeding with adjustable thickness, precise three-side alignment, and automatic stacking. Sheet size and margins are adjustable, and different hole shapes can be achieved by changing punching dies.

Parameter

  • Max Punching Size for Cover
  • 285×285mm
  • Min Punching Size for Cover
  • 148×120mm
  • Max Punching Size Range for Inner Sheets/PP Plates
  • 420×420mm
  • Min Punching Size Range for Inner Sheets/PP Plates
  • 120×120mm
  • Max Punching Thickness
  • 2mm
  • Max Punching Stacking Height
  • 500mm
  • Max Punching Speed for Inner Sheets/PP Plates
  • 4800-7200times/h
  • Max Punching Speed for Cover
  • 1800-6000times/h
  • Inner Sheets/PP Plates Thickness Range
  • 50-250gsm
  • Power
  • AC380V / 3Ph / 50Hz / 3Kw
  • Machine Dimensions
  • 2200×1000×1400mm(L×W×H)
  • Machine Weight
  • 800kg
  • Air Demand
  • 0.4-0.6Mpa
