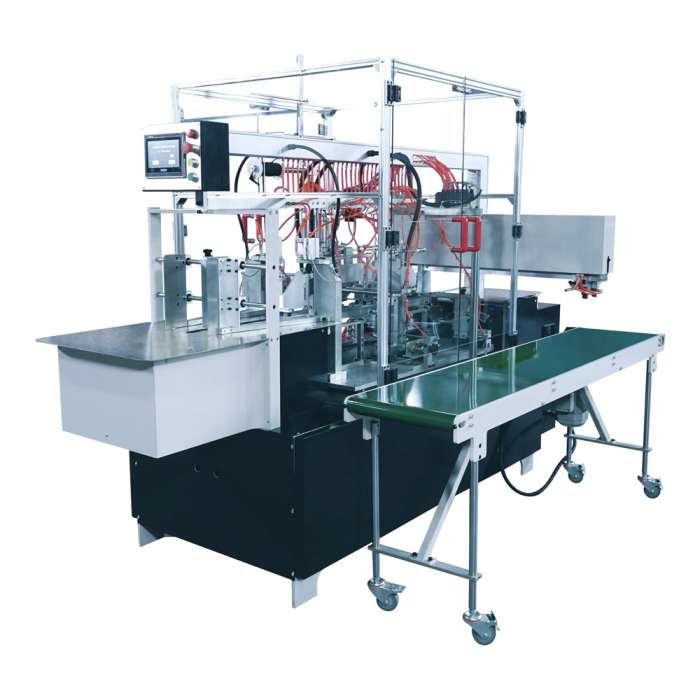

HX36B PRO Automatic Notebook Elastic Band Fixing Machine

Tag : elastic band,noterbook,elastic band fixing machine


HX36B PRO Automatic Diary/Notebook Elastic Band Fixing Machine is an automatic machine for fixing the elastic closing band/strap onto the hardcovers/softcovers of notebooks/diaries, with a high speed and quality of the process, the speed can be 1500 pcs/h.

Parameter

Min Cover Size
100×160mm(W×L)

Max Cover Size
300×440mm(W×L)

Working Speed
1500pcs/h

Distance between 2 Holes
40-271mm

Distance from Hole to Upper and Bottom Side
0-30mm

Distance from Hole to Cover Edge Side
10-60mm

Elastic Band Length
85-370mm

Cover Thickness
1.5-4mm

Width of Elastic Band
6-15mm

Dimensions
2650×1600×1650(L×W×H)

Power
6KW

Voltage
220V

Weight
1300KG
