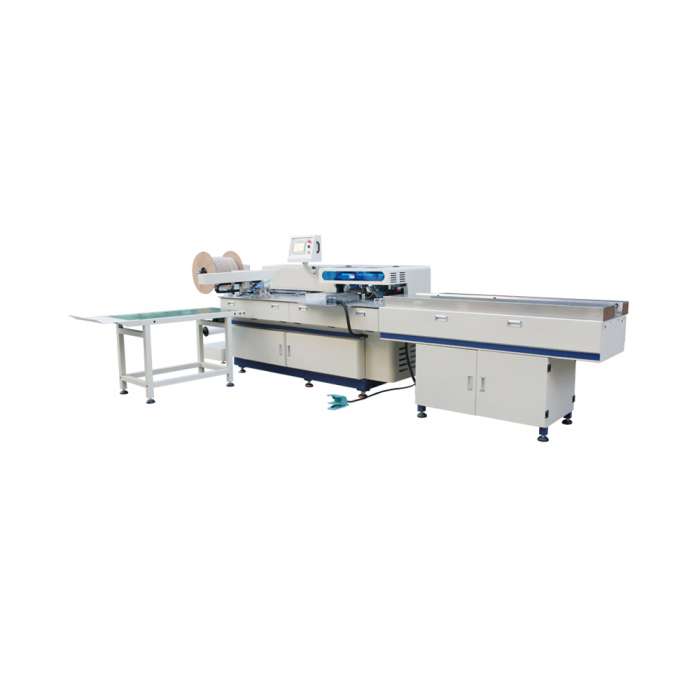

Automatic Double Loop Wire Punching and Binding Machine

Tag : double loop wire,wire-o binding,exercise book,notebook
Automatic Double Loop Wire Punching and Binding Machine with the integration of unwinding the spool, loops cutting, conveying, and closing, the bigger cover and inner paper punching separately, for various double loop wire books, notebooks, and table calendars, etc., with the optional calendar hanger device, hardcover manual punch to improve the efficiency of customers, only need 1-2 operators, easy to adjust, high speed and stable.

Parameter

  • Max Punching and Binding size
  • 510mm(punched side)×800mm
  • Min Punching and Binding size
  • 100mm(punched side)×140mm
  • Speed
  • 800-2000 books/hour
  • Punching Thickness(one-time)
  • 1-6mm
  • Max Punching Thickness
  • 13mm
  • Max Punching Thickness for Special Products
  • 16mm
  • Max Punching Times for One Book
  • 5times
  • Max Book Size for the Convery
  • 420×420mm
  • Double Loop Wire Size
  • 1/4"-5/8"
  • Pitch
  • 2/1; 3/1
  • Width of Paper for Binding
  • 100-520mm
  • Power
  • 220V/50-60Hz/1PH/4.5kw
  • Air Pressure
  • 7-8bar
  • Net weight
  • 2000kg
  • Dimensions
  • 4800×2600
