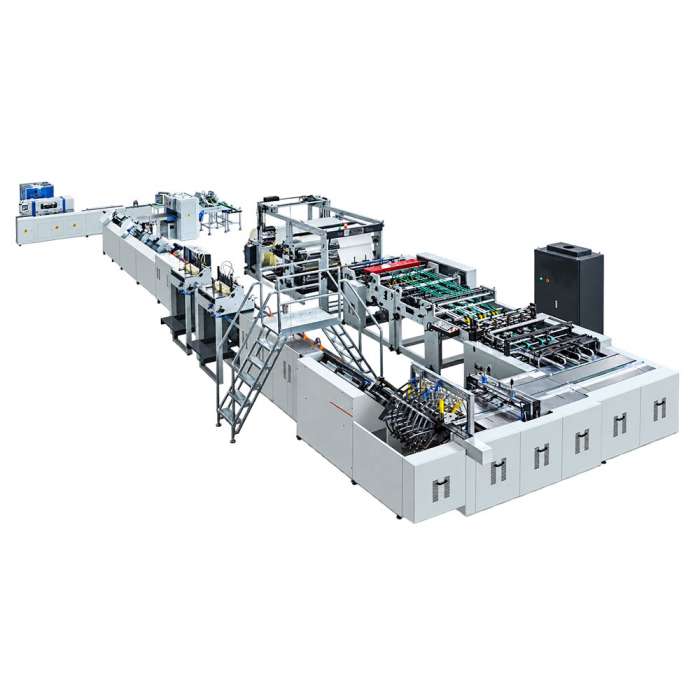

HX1100HB High Speed Web Fed Flexo Printing and Cold Glue Notebook Binding Line

Parameter

• Web Unwinding Unit

• Maximum Roll Diameter
• Ø1,270 mm

• Web Width
• 600–1,100 mm

• Roll Core Inner Diameter
• 3 inches (76 mm)

• Paper Weight
• 45–100 g/m²

• Flexographic Printing Unit

• Printing Colors
• Double-sided, 2 colors per side

• Printing Width
• 600–1,100 mm

• Printing Circumference
• 600–800 mm

• Registration Accuracy
• ≤0.1 mm

• Maximum Printing Speed
• 300 m/min

• Cross Sheeting Unit

• Sheeting Width Range
• 600–1,100 mm

• Sheeting Circumference Range
• 600–800 mm

• Sheeting Accuracy
• ≤0.1 mm

• Maximum Sheeting Speed
• 300 m/min

• Sheet Counting Unit

• Counting Range
• 14–208 sheets per stack

• Counting Accuracy
• ±0 sheets

• Cover Feeding Unit

• Cover Dimension (Width Direction)
• 140–300 mm

• Cover Dimension (Circumferential Direction)
• 600–800 mm

• Cover Paper Weight
• 70–300 g/m²

• Cold-Glue Spine-Taping Unit

• Spine-Taping Dimension (Width Direction)
• 140–300 mm

• Spine-Taping Dimension (Circumferential Direction)
• 600–800 mm

• Book Block Separating Unit

• Splitting Size
• 600–800 mm

• Book Block Thickness Range
• 3–24 mm

• Three-Knife Trimming Unit

• Maximum Trimming Size
• 300 × 300 mm

• Minimum Trimming Size
• 100 × 100 mm

• Corner Rounding Unit

• Maximum Workpiece Size
• 300 × 300 mm

• Minimum Workpiece Size
• 140 × 100 mm

• Maximum Book Block Thickness
• 65 mm

• General Specifications

• Total Power
• 65 kW

• Total Machine Weight
• 35,000 kg
