HXEP1000 Book Edge UV Printing Machine

Tag : book edge printing,UV print,inkjet print

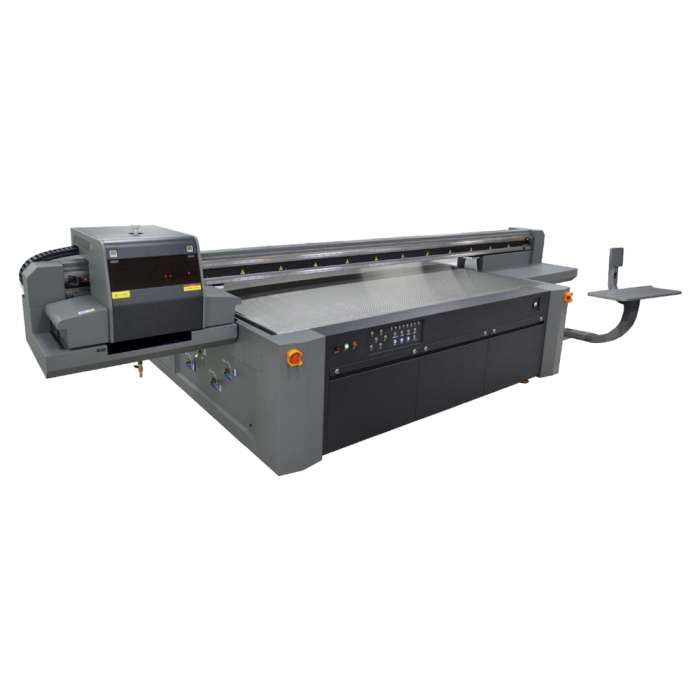

HXEP1000 Book Edge UV Printing Machine features a flatbed printing structure equipped with 2 to 8 Ricoh G5/G6 print heads, enabling high-speed and high-definition UV printing on three sides of book edges. Compared to the HXEP400, HXEP10000 offers a single-pass printing area of over 3㎡ and ensures instant drying of UV inks, especial fitting for high-volume book edge printing. Utilizing advanced UV inkjet technology, it delivers higher resolution and superior color performance. With customizable book clamping fixtures, the machine accommodates books of various sizes, providing flexibility and precision for diverse printing requirements.

Parameter

  • Print Head Type
  • Ricoh G5/G6
  • Number of Nozzles
  • 2-8 optional
  • Print Mode
  • Unidirectional and Bidirectional
  • G5 Print Resolution
  • 720×600dpi, 720×900dpi, 720×1200dpi
  • G6 Print Resolution
  • 2400dpi
  • G5 Capacity Effiency - Standard Mode
  • 24.3m²/h
  • G5 Capacity Effiency - Production Mode
  • 16.2m²/h
  • G5 Capacity Effiency - High Precision Mode
  • 12.3m²/h
  • G6 Capacity Effiency - Standard Mode
  • 32.8m²/h
  • G6 Capacity Effiency - Production Mode
  • 21.9m²/h
  • G6 Capacity Effiency - High Precision Mode
  • 16m²/h
  • Book Higth
  • 0.1-300mm
  • Color Configuation
  • K,C,M,Y,Lc,Lm,W,V free combination
  • RIP
  • Sharp Print (Ultraprint/Onyx/PhotoPrint optional)
  • Print Size
  • (2500×1250mm)±2mm
  • Data Interface
  • Gigabit Network Cable
  • Dimensions
  • 4640×2125×1460mm±10mm(L×W×H)
  • Power
  • 6.8KW
  • Power Requirements
  • AC 220V(±5%), 50Hz
  • Environmental Requirements
  • Independent, Clean, Low Dust, Less Light and Well Ventilated Workshop
  • Ambient Temperature
  • 18-30℃
  • Relative Humidity
  • 30%-70% (non condensing)
