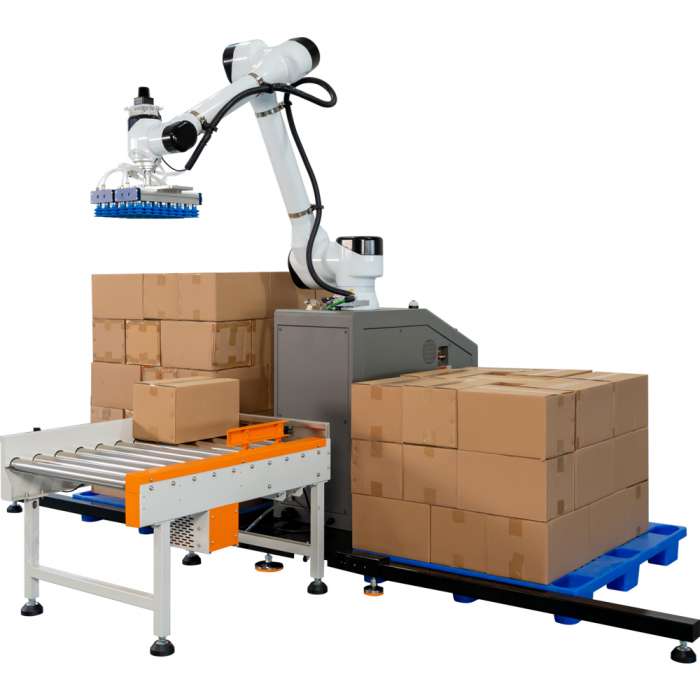

HX30R ROBOT Stacking and Palletizing Collaborative Robot

Tag : robot,palletizing,collaborative robot
HX30R Collaborative Robot automates stacking and palletizing tasks through an intuitive, user-driven workflow. The process begins with simple task configuration via the touchscreen interface or wired remote control. Operators can quickly set new paths and stacking patterns without traditional programming. The robot then autonomously handles the material handling - picking, stacking, and organizing items according to the predefined patterns. It works seamlessly alongside human operators in shared spaces, continuously adapting to production needs while maintaining safe interaction through integrated sensors and collision detection capabilities.

Parameter

  • Palletizing Speed
  • 8-11 boxes/min
  • Load Weigt
  • 30KG
  • Applicable Size
  • 1200×1200×140mm(L×W×H)
  • Pallet Supply Method
  • Manual placement/automatic placement
  • Palletizing Gripper
  • Suction Cup/Splint
  • Palletizing Height
  • 300-2400mm(Including Tray Height)
  • Working Radius
  • 1800mm
  • Overall Height of Equipment
  • 2580-3130mm
  • Applicable Power Supply
  • 220v, 50HZ
  • Protection Level
  • IP54
  • Equipment Power
  • 3000W
  • Equipment Weight
  • 550KG
  • Compatible Size
  • L(200-1200)×W(200-1200)×H(100-600)mm
