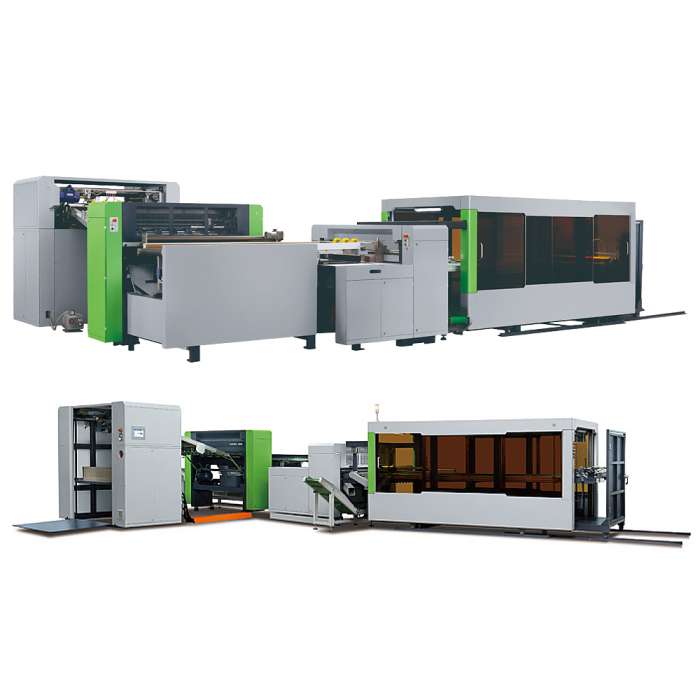

HX2100A Fully Automatic Paper Board Slitting Machine

Tag : slittling machine,paper board slitter,cardboard slitter,board slitting machine,paper board
HX2100A Fully Automatic Paper Board Slitting Machine is engineered for high-precision, efficient processing of cardboard materials, seamlessly integrating vertical and horizontal slitting into one continuous operation. Its fully automated workflow begins with automatic loading of whole trays, followed by precise vertical slitting after which the board is automatically turned for horizontal slitting, and concludes with the automatic stacking of finished products. The machine ensures exceptional slitting accuracy and consistent board strip quality, facilitated by a user-friendly digital knife adjustment ruler for quick setup changes.

Parameter

  • 1st Slit Max. Paper Board Size
  • 1300×1100mm
  • 1st Slit Min. Paper Board Size
  • 750×750mm
  • 2nd Slit Max. Paper Board Size
  • 1100×450mm
  • 2nd Slit Min. Paper Board Size
  • 750×150mm
  • Finished Paper Board Length Range
  • 150-550mm
  • Finished Paper Board Width Range
  • 85-600mm
  • Paperboard Thickness
  • 1-3mm
  • Paper Board Feeding Speed
  • 5-35sheets/min
  • Max. Paper Board Speed
  • 120m/min
  • Power Supply
  • AC 380V, 50Hz
  • Rated Power
  • 11kW
  • Machine Dimensions
  • 11000×6700×2200mm(L×W×H)
