Best Automatic Four Corner Rounder for Thick Book Blocks and Board Stacks in 2026

In bookbinding and premium packaging, rounded corners signal craftsmanship. They protect edges from dog‑earing, feel pleasant in hand, and are mandatory for children's board books and gift editions. Yet most corner rounders are limited to thin pads or single sheets. The HX120 Automatic Four-Corner Round Trimming Machine is engineered for the tough jobs - thick hardcover book blocks, stacked cards, and rigid board piles up to 120 mm in height, an industry‑first capability.

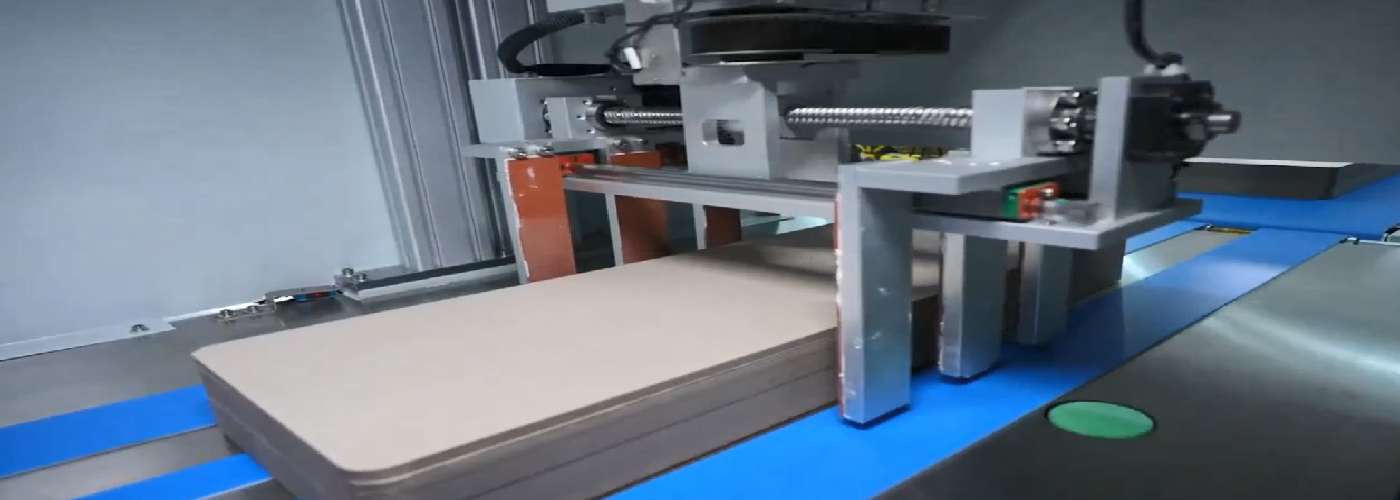

HX120 Automatic Four Corner Round Trimming Machine

The HX120's defining innovation is its dual‑sequence trimming process. Instead of trying to cut all four corners simultaneously - which often causes uneven pressure and irregular radii on thick stacks - the machine first trims two adjacent corners on one side, then precisely repositions the material to trim the opposite two. This staged approach ensures uniform die pressure, consistent corner radius, and smooth edges even through dozens of laminated sheets or board layers.

Uneven corner sizes and burrs are the two most common rejects in corner rounding. The HX120 virtually eliminates both. By cutting in two controlled sequences with a high‑power pneumatic drive, the blade maintains full, even contact through the entire stack height. The result is a clean, symmetrical round corner on every sheet in the pile - top to bottom - with no feathering or torn fibers.

Automation is built in. The machine features automatic feeding, clamping, and ejection. An operator loads the stack (or single book block), initiates the cycle, and the HX120 completes all four corners before delivering the finished piece. This reduces labor, increases throughput, and removes the inconsistency of hand‑fed lever cutters.

Pneumatic clamping is adjustable for different material densities - from soft paperboard to dense grey board. This prevents sheet shift during cutting, which is critical when rounding a 100‑sheet card deck or a 120 mm hardcover text block where even 0.5 mm misalignment is visible.

Safety and ergonomics meet industrial standards. Fully interlocked guards protect operators, and the work height is designed for comfortable loading/unloading. The machine runs on standard shop air with a high‑power pneumatic cylinder ensuring consistent cutting force regardless of stack thickness.

Applications span multiple markets: hardcover book blocks (especially children's & gift books), board book stacks, greeting card decks, rigid carton corners, and leather‑bound albums. Anywhere rounded corners add value or safety, the HX120 delivers production‑grade results.

For binderies and carton makers moving beyond basic corner rounding, the HX120 offers a rare combination - the capacity to handle thick stacks, the precision to guarantee uniform corners, and the automation to keep pace with modern binding lines. It turns corner rounding from a manual bottleneck into a reliable, value‑adding finishing step.
