The Spine Press Is Crucial for Preventing Signatures from Loosing

In traditional bookbinding, the thread‑sewing process is only half the battle. After signatures are sewn, the book block spine is often slightly rounded, uneven, or loosely packed—especially on thick volumes or multi‑signature texts. If you send that block directly to the gluing or casing‑in stage, you risk uneven adhesive distribution, weak hinge strength, and covers that don't sit flush. The HXZJ400 Book Block Spine Pressing Machine is designed to solve this exact problem.

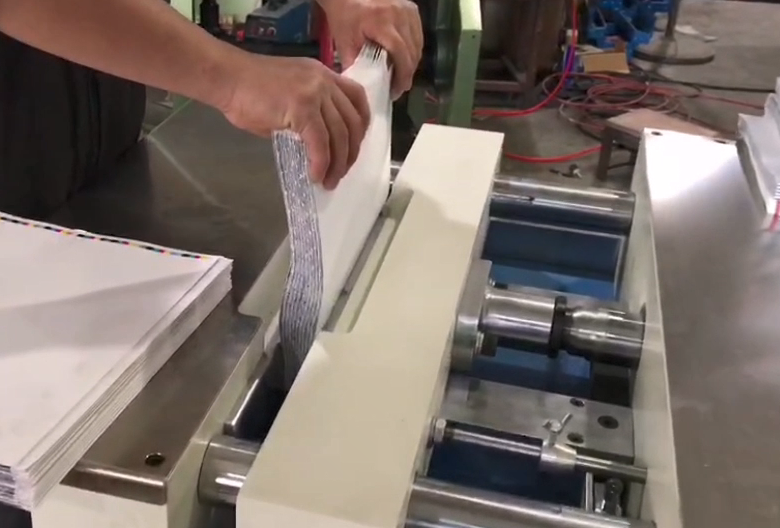

HXZJ400 Book Block Spine Pressing Machine

The HXZJ400 uses a powerful hydraulic‑driven pressing system to apply uniform, controllable pressure along the entire spine length. This consolidates the sewn signatures, flattens the spine profile, and ensures the book block thickness is consistent from head to tail. The result is a perfectly prepared block that accepts glue evenly and seats correctly in a hardcover case.

Block size flexibility is built in. The machine handles minimums of 150×100 mm up to 700×400 mm, covering everything from small journals to large‑format art books and encyclopedias. This range allows binderies to standardize on one spine press for their entire hardcover and thread‑sewn product line.

Hydraulic pressure is adjustable to match the book block density and sewing tension. Over‑pressing can damage delicate signatures; under‑pressing leaves the spine loose. The HXZJ400 lets operators dial in the correct force, then the system maintains it consistently across the full production run.

Speed is rated at up to 60 m/min (linear feed), meaning book blocks move through the press quickly without bottlenecking the binding line. For a typical bindery running 500–1,000 hardcovers per shift, the spine press adds only seconds per book while dramatically improving final quality.

The machine features low‑noise operation and an intuitive control panel. Operators can set pressure, dwell time, and conveyor speed with minimal training. Dual safety protection mechanisms—including light curtains and emergency stops—ensure compliance with international safety standards.

Footprint is modest at 2.6×1.2 m, and the unit weighs 800 kg for vibration‑free operation. Power requirement is 400 V/3 Ph at 2 kW, with air demand of 900 L/min—standard for most industrial bindery environments.

For hardcover and thread‑sewn book manufacturers, the HXZJ400 isn't optional—it's a quality‑assurance device. By guaranteeing a flat, tightly consolidated spine before gluing or casing‑in, it prevents the most common hardcover defects and protects your reputation with publishers and clients.
