The Best Semi Auto Sewing Machine for Extra Large Hardcovers and Photo Albums in 2026

In premium bookbinding, size and quality define your market position. Art books, coffee‑table editions, and luxury photo albums demand larger formats and stronger bindings than standard novels. The HXSS460 Semi Auto Sewing Machine is purpose‑built to meet these demands with industrial‑grade stability and precision.

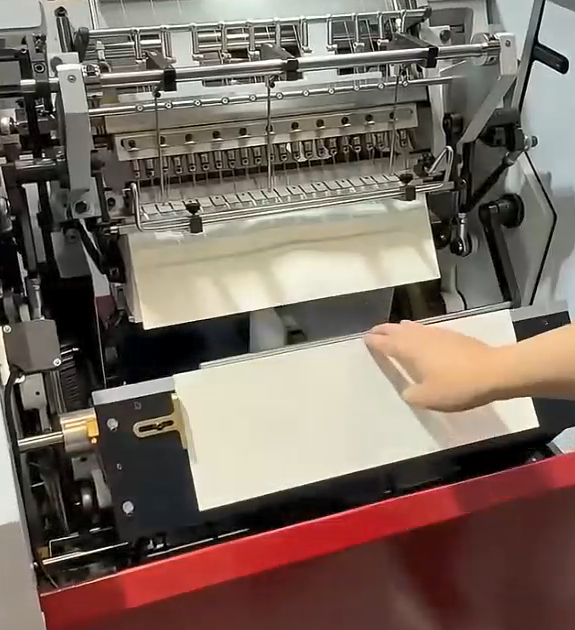

HXSS460 Semi Auto Sewing Machine

The machine's defining feature is its stable H‑type frame. Unlike lighter C‑frame designs, the H‑frame resists deflection under heavy sewing pressure, ensuring consistent needle penetration across the entire 460×460 mm binding area. This is critical for extra‑large hardcovers where even 0.5 mm of needle deviation can cause hinge weakness.

A lightweight, high‑strength aluminum alloy saddle supports the book block during sewing. This reduces inertia, allowing the machine to reach 50 signatures per minute while maintaining smooth, low‑noise operation. Variable frequency control lets operators fine‑tune speed for delicate materials or thick multi‑signature blocks.

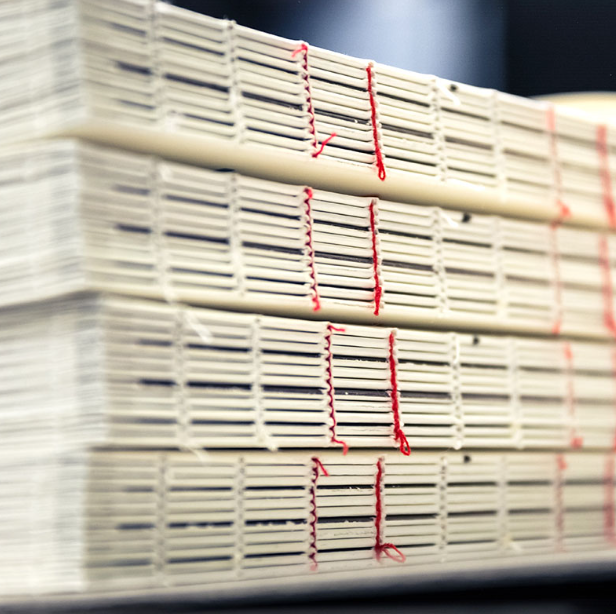

Binding quality is anchored by the internationally popular 11‑group short‑stroke fine needle system. With an 18 mm stitch pitch, this configuration delivers dense, secure stitching that prevents signature pull‑out—even on heavy art paper or thick board book blocks. The sealed, pre‑adjusted needle base minimizes maintenance and ensures consistent stitch depth.

Safety and durability are integrated. Infrared sensors protect operators from accidental contact, while automatic centralized lubrication extends component life and reduces manual maintenance. A synchronous output mechanism works with an auto‑lifting collection table to deliver neatly stacked, ready‑to‑handle book blocks.

The HXSS460 handles binding sizes from 110×100 mm up to 460×460 mm, covering everything from small journals to oversized photo albums. This versatility allows binderies to standardize on one sewing machine for their entire premium product line.

Power consumption is modest at 1.1 kW, and the machine's footprint (1200×1000×1400 mm) fits into most finishing areas without major reconfiguration. Net weight is 900 kg, providing the mass needed for vibration‑free operation at high speed.

For binderies producing extra‑large hardcovers and photo albums, the HXSS460 offers the perfect combination of size capacity, stitching strength, and operational efficiency. It's the professional choice for premium binding that lasts.
