Integrate Mylar Lamination and Tab Punching at 3,000 Pieces Per Hour

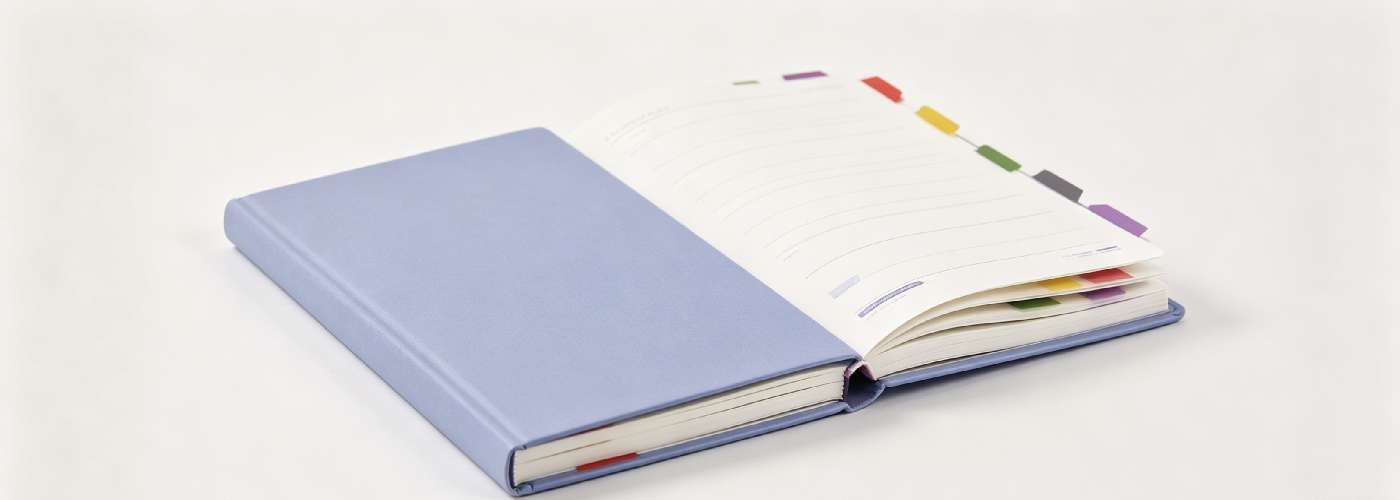

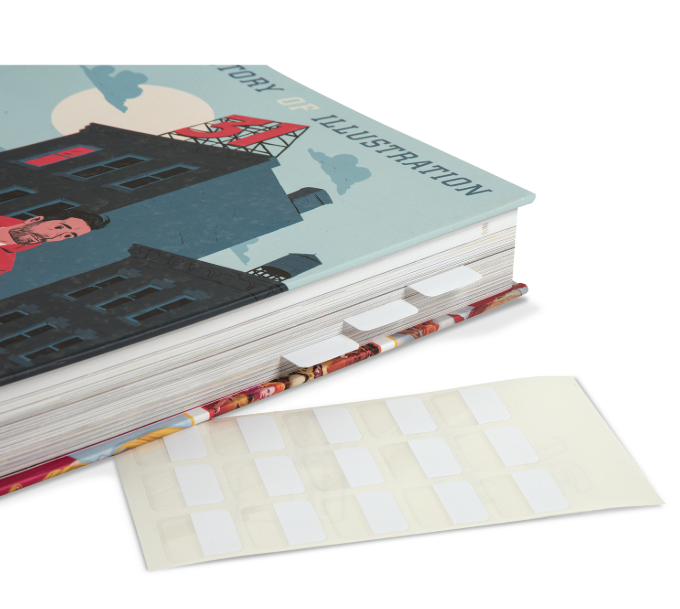

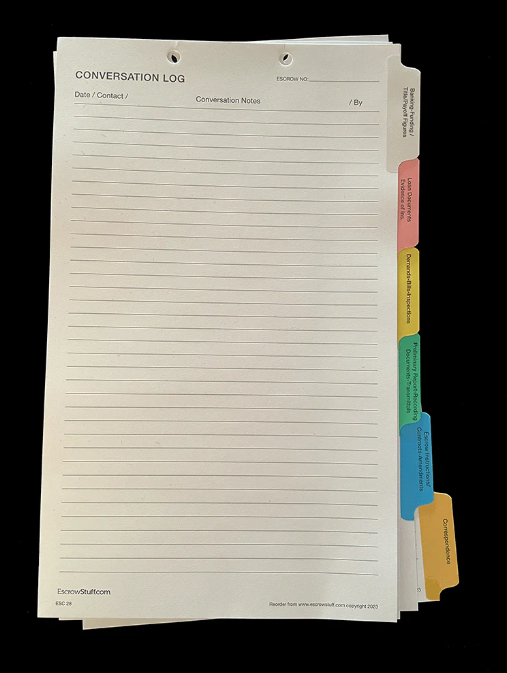

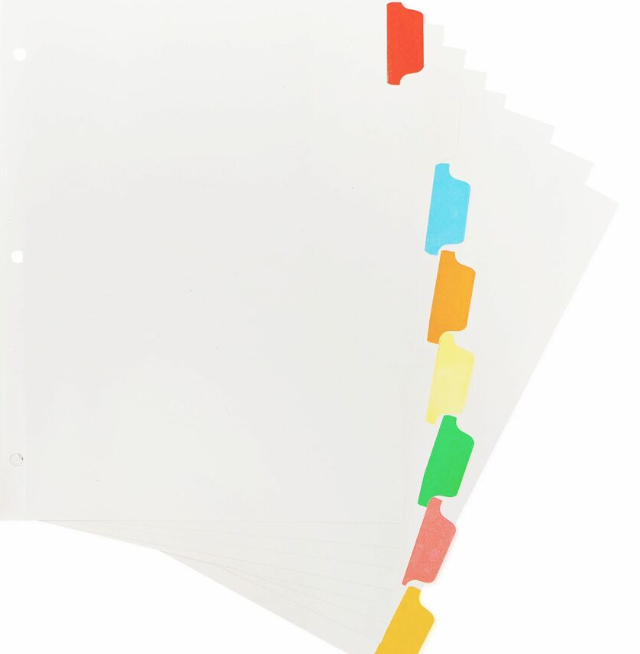

The market for indexed products is constantly evolving. While traditional edge‑applied Mylar tabs remain a staple, there is growing demand for insert‑style tabs—where the Mylar is laminated into a slit cut into the page itself, rather than over the edge. These are common in premium catalogs, technical manuals, and archival documents where a flush, non‑protruding tab is desired. The HX330MT Mylar Tab Laminating Machine is uniquely adaptable, with the capability to be expertly retrofitted to support this advanced application, making it a future‑proof asset for any finishing operation.

HX330MT Mylar Tab Laminating Machine

The retrofit process transforms the HX330MT from a standard edge‑laminating machine into a specialized insert‑tab laminator. While the specifics of the retrofit are tailored to the machine, the core principle involves modifying the feed and application mechanism to handle a pre‑slit sheet. Instead of wrapping the Mylar around the paper edge, the machine feeds the Mylar strip into the slit and applies heat and pressure to bond it securely within the page. This creates a durable, professional‑looking tab that does not interfere with the book's ability to close flush.

This capability opens up entirely new market segments. Premium catalogs and product guides often use insert tabs to highlight specific sections without disrupting the overall aesthetic of the page layout. Technical and engineering manuals benefit from the durability of Mylar in high‑wear applications, and the flush design prevents the tabs from catching or being torn off. Archival and library materials require robust, long‑lasting indexing that insert tabs provide, ensuring the information remains accessible for decades.

The HX330MT's existing features provide a strong foundation for the retrofit. Its precise temperature control (50–100 °C) is essential for activating the adhesive within the confined space of a paper slit without scorching the surrounding paper. The adjustable gluing length (10–110 mm) allows the operator to apply the exact amount of adhesive needed to secure the Mylar within the slit, preventing both a weak bond and messy adhesive squeeze‑out.

The photoelectric sensor logic (common in the machine's ecosystem) can be adapted to detect the leading edge of the pre‑slit sheet, ensuring the Mylar is inserted at the correct longitudinal position. This maintains the high level of accuracy required for insert tabs, where even a 1 mm misplacement is noticeable. The 0.6–0.8 MPa pneumatic pressure provides the necessary force to create a strong bond without damaging the paper fibers around the slit.

Offering insert‑tab lamination provides a significant competitive differentiator. Many finishing shops are limited to standard edge tabs. By retrofitting your HX330MT, you can offer a premium service that few others can match. This allows you to command higher prices, attract more discerning clients, and build a reputation as a specialist in high‑end finishing.

The compact and robust design of the HX330MT (1160×700×1070 mm, 130 kg) remains an advantage even after retrofitting. The modification does not turn the machine into a bulky, complex piece of equipment. It retains its user‑friendly nature and relatively small footprint, making it a practical addition to a busy finishing department.

Investing in a machine that can be retrofitted is a smart financial decision. It protects your initial investment by extending the machine's useful life and relevance. Instead of having to purchase an entirely new, dedicated insert‑tab machine in the future, you can adapt the HX330MT to meet new market demands. This reduces the total cost of ownership and improves your return on investment.

The 220 V / 1Ph / 50 Hz power requirement ensures that the retrofitted machine remains easy to integrate into your existing shop floor. You do not need to worry about special electrical provisions for this advanced capability. The user‑prepared 1.5 kW air compressor also continues to serve the modified machine, simplifying the utility requirements.

For forward‑thinking binders and finishers, the ability to retrofit the HX330MT for insert‑tab lamination is a powerful strategic advantage. It demonstrates a commitment to innovation and a willingness to invest in the technology needed to stay ahead of the competition. It ensures that your business is not just keeping pace with the market, but actively shaping its future.
