How to Collect and Palletize the Web Press Folded Signatures

A web press processes the printing on a roll before it is cut. Picture old movies where newspapers are running along huge metal drums – that's a web press.

A web press is a printing press that uses a continuous roll of paper. This method of printing is typically used to produce magazine and newspaper publications. Web press printing is designed for high-volume, high-speed printing jobs.

Web presses are used for high-volume runs of printed material. Usually, magazines or newspapers are printed on web presses. Books, manuals, and calendars are also printed on web presses if they have large enough quantities to make the runs cost-effective.

Unlike a sheet-fed press, which has separate sheets of paper entering the press one after another, a web press is fed from a continuous spool of paper that flows through the press.

Once printed on, pages are separated and cut to size then put together into the finished product like mass-market books, magazines, newspapers, catalogs, and brochures. Someone looking for runs of printed material with over 10,000 or 20,000 impressions typically chooses the web press option.

Different from sheet-fed printing requiring off-line finishing machines, such as folding machine, cutting machine, to go on to the next process, the web press often with in-line finishing capabilities, such as perforating, cutting, and folding, allows for the production of finished products in a single pass, so the product is complete when it comes off the press.

So how to collect the folding signatures from web press, normally have two different ways for choosing:

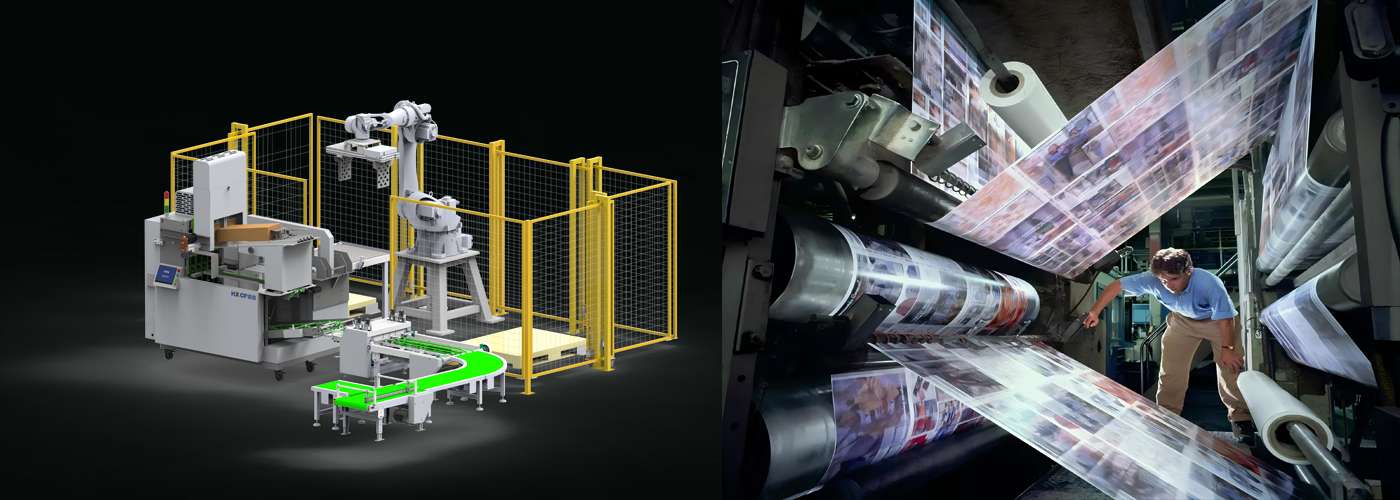

Web Press Signatures Collecting, Stacking and Palletizing System

Web Press Signatures Collecting, Stacking and Palletizing System, which included the conveyor with flat pressing and flapping function, the stacking sets, and the palletizing robot.

The web press with folding sets, then connect with web press stacker, the continuous flow of folding signatures collect with the Stacker, then the signature stackes be sent to the Web Press Signatures Collecting, Stacking and Palletizing System, the signature stack will be flat pressing, and flapping to line up on both sides, the neat stack will be seized by the robot arm with clamp, then palletizing on the pallet.

HX525 Web Press Stacker

HX625 Web Press Stacker

This system save at least 4 operators to finish this process, and the whole system can meet the high speed of web press up to 40000 pcs/hour.

Web Press Signatures Collecting, Budling and Palletizing System

The folding signatures from web press, in order to improve the next precess such as the gathering, sewing and binding, the signatures need to be flat pressed totally, so Web Press Signatures Collecting, Budling and Palletizing System, which included Automatic Vertial Preesing Delivery with Bundling Machine, the the palletizing robot, connect with web press, the stream of signatures will be stacked and bundled, the signature bundles will be seized by the robot arm with clamp, then palletizing on the pallet.

Web Press Signatures Collecting Bundling Palletizing System

Automatic Vertical Stacking and Bundling Machine

This Automatic Vertial Preesing Delivery with Bundling Machine is for the folded signatures collecting, collect the folding signatures vertically, by pressing and fapping the stack neatly, then pushing them into the bundling station, inserting the clapboard at both ends automatically, with 3000N pressure pressing and bounding the stack automatically. It is the fully automatic delivery for large runs folding signatures production, no laborer required, completely the intelligent automatic folding process. The speed is match with all brand web press, can be up to 40000 pcs/hour.

so now you have two different way to collect and palletize the web press printing and folded signatures.
