Efficient Case Making for Short Runs and Complex Designs

As customer demands shift toward personalization and shorter print runs, traditional case-making equipment often struggles to keep pace. Long setup times, complex adjustments, and high labor requirements can make small orders unprofitable. The Semi Auto Digital Case Making Machine was developed specifically to overcome these limitations, offering a modern, efficient alternative for today's dynamic market.

Semi Auto Digital Case Making Machine

A standout feature of this machine is its ability to economically produce both one-off custom cases and medium-sized batches with minimal downtime. Thanks to its digital control system, operators can store and recall job parameters instantly. This not only speeds up production but also ensures repeatability and accuracy—critical factors when producing branded or serialized items.

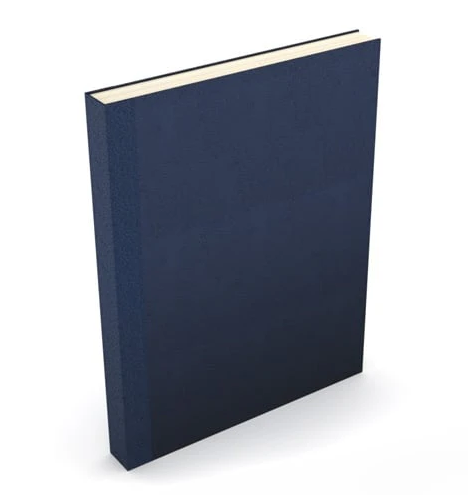

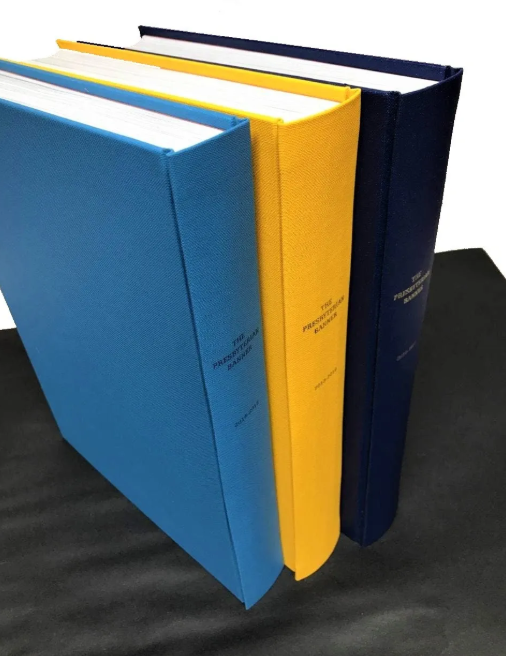

The machine's application range goes far beyond standard hardcover books. It excels at producing ring binders, menu covers, photo albums, folders, and calendar backs. Even complex or asymmetrical cases, which are difficult to produce consistently by hand, are handled with ease. This versatility allows manufacturers to serve a broader client base, from corporate offices to educational institutions and gift suppliers.

Workflow efficiency is another major advantage. The process begins with the operator applying glue and positioning the boards. Once fed into the machine, it automatically folds and presses all four edges, completing the case with professional precision. This semi-automatic operation requires only one operator, freeing up additional staff for other tasks and reducing overall labor expenses.

Technical specifications further highlight its capabilities. The machine accommodates open case sizes from 230×230mm up to 700×400mm, with board thicknesses from 1mm to 4mm and cover materials from 80gsm to 200gsm. Its ability to handle spine widths as narrow as 8mm makes it suitable for slim diaries, catalogs, and specialty publications.

Performance is optimized for balanced output, delivering a consistent speed of 6 pieces per minute. This rate ensures high productivity without compromising the careful folding and pressing required for premium-quality cases. The 7.5kW mainframe power ensures smooth operation, while voltage compatibility (380V/50Hz or 220V/60Hz, three-phase) supports international deployment.

Built to last, the machine weighs 750kg and measures 1900×1900×1700mm, providing the stability needed for precision work. Its robust construction minimizes vibration and wear, ensuring long-term reliability even in demanding production environments.

For manufacturers seeking a cost-effective way to modernize their case-making capabilities, the Semi Auto Digital Case Making Machine offers the perfect blend of automation, flexibility, and precision. It enables businesses to meet evolving market demands while maintaining the highest standards of craftsmanship.
