Cut Booklet Binding Costs with the HX450S Saddle Stitcher

In the world of print finishing, booklet binding is a high‑frequency, low‑margin challenge. Short‑run manuals, event programs, and newsletters demand speed, but their small quantities make fully automatic lines uneconomical. The HX450S Semi Auto Saddle Stitcher bridges this gap perfectly, offering a semi‑automated workflow that slashes labor costs while maintaining professional quality.

HX450S Semi Auto Saddle Stitcher

The machine's core advantage is its integrated automation after manual gathering. Once an operator collates the signatures, the HX450S takes over completely—automatically feeding the spine, driving the stitching heads, and collecting the finished booklets. This eliminates the manual folding, stapling, and stacking that typically consumes 60–70% of a binder's time on small jobs.

Versatility in production formats is a standout feature. The HX450S handles both 1‑up and 2‑up production in a single pass. For standard A4 booklets, you run 1‑up. For smaller A5 or DL formats, you run 2‑up, doubling your output without doubling your floor space or labor. This flexibility is essential for print shops juggling diverse client requests.

Stitching speed is adjustable from 15 to 100 cycles per minute. This wide range allows you to slow down for complex, thick booklets (up to 4 mm thickness) and ramp up speed for simple, thin pamphlets. The ability to fine‑tune speed based on paper weight and fold quality prevents misfeeds and missed stitches.

The photoelectric sensor system is the backbone of the HX450S's reliability. These sensors monitor signature presence, position, and transport throughout the stitching process. If a signature is missing or misaligned, the machine stops automatically, preventing a "missed stitch" that would ruin an entire batch. This protective intelligence safeguards your materials and your reputation.

Standard configuration includes two US M200 stitching heads, renowned for their durability and consistent clinch formation. For operations requiring higher throughput or heavier wire gauges, the system supports expansion to four stitching heads. This scalability allows you to grow your capacity without replacing the entire machine.

Binding size flexibility covers most commercial needs. With a maximum binding size of 450×305 mm, the HX450S easily handles A4 landscape booklets and small posters. The minimum size of 89×127 mm accommodates pocket‑sized catalogs and invitations. This broad range makes it a true workhorse for general commercial printing.

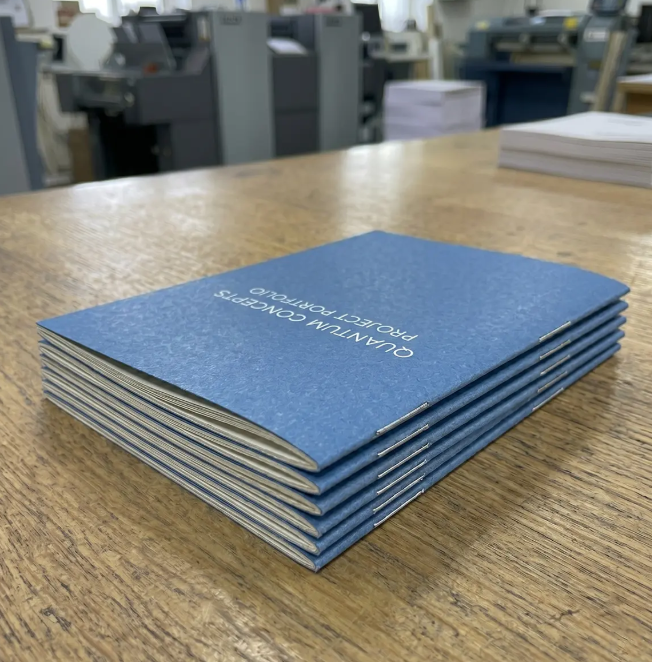

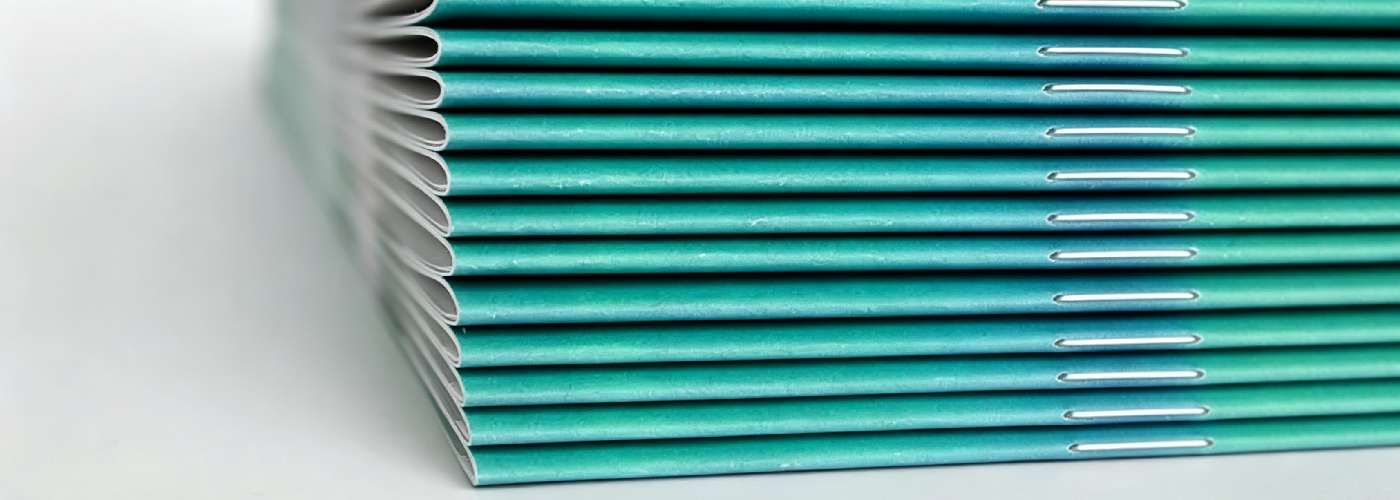

Wire management is simplified. The machine accepts standard 25#–26# wire gauges, which are readily available and cost‑effective. The 13 mm stitch crown width provides a strong, flat clinch that lies neatly against the spine, preventing pages from snagging or pulling out during use.

The stitch center distance adjustment (45–270 mm) allows precise placement of staples based on booklet width. This ensures the wire catches enough paper to hold securely without being so wide that it interferes with the binding hinge or the readability of the text near the spine.

Physical footprint is compact. Measuring 2200×1320×1350 mm and weighing 350 kg, the HX450S fits into almost any finishing area. Its relatively light weight (for an industrial stitcher) means it can often be installed without reinforced flooring, reducing setup costs.

Power requirements are modest. The 0.75 kW main motor runs on standard industrial voltages (380 V/50 Hz or 220 V), making it easy to integrate into existing electrical systems. Low power consumption keeps operating costs predictable and manageable.

For print finishers looking to optimize short‑run booklet production, the HX450S is a strategic investment. It delivers the speed, reliability, and flexibility needed to turn a low‑margin service into a profitable, high‑volume offering.
