Boost Rigid Box Output with the HXGDC1100 Greyboard Cutter

In rigid box manufacturing, greyboard cutting is the foundation of quality. If the board is uneven, misaligned, or requires secondary trimming, the entire box—cover, lining, and structure—will suffer. Traditionally, binderies rely on manual cutting or semi‑automatic presses that require constant operator intervention. The HXGDC1100 Automatic Greyboard Die Cutting Machine is engineered to eliminate these inefficiencies through full automation, heavy‑duty construction, and precision flatbed die cutting.

HXGDC1100 Automatic Greyboard Die Cutting Machine

The machine's defining feature is its fully automated single‑sheet feeding system. Unlike manual loaders that require an operator to place each sheet, the HXGDC1100 uses a side‑loading feeder that picks, aligns, and delivers boards continuously. This eliminates manual handling during the cutting cycle, significantly improving operator safety and reducing fatigue‑related errors.

Nick‑free die cutting is a game‑changer. Conventional die cutters often leave small connecting tabs (“nicks”) between cut pieces to hold the sheet together for removal. These nicks require secondary trimming, which adds labor and risks edge damage. The HXGDC1100's advanced die‑cutting mechanism severs the board cleanly in one press, producing smooth, finished edges ready for immediate use in box assembly.

Heavy‑duty steel frame construction ensures stability under extreme pressure. With a maximum cutting pressure of 300 tons, the machine powers through thick greyboard (≤2200 gsm) without flexing or vibration. This rigidity is essential for maintaining dimensional accuracy across large sheets—up to 1090×790 mm—and ensuring every board in a production run is identical.

Speed and throughput are optimized for industrial demand. Operating at 1500–1800 cycles per hour, the HXGDC1100 outpaces manual and semi‑auto alternatives by a wide margin. For a rigid box manufacturer producing 10,000 boxes per day, this speed translates into shorter lead times, lower labor costs, and the ability to accept large, time‑sensitive orders.

Simplified make‑ready procedures reduce setup time. Changing between box sizes or board grades involves quick mold adjustments and minimal calibration. This agility is critical for binderies handling diverse orders—from small jewelry boxes to large appliance packaging—where frequent changeovers can otherwise erode profitability.

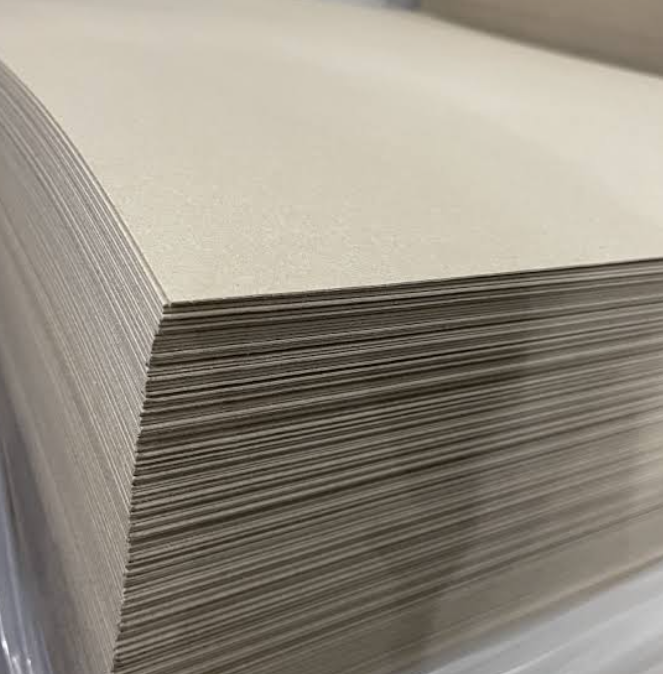

Material delivery is neat and organized. The machine's output system stacks cut boards precisely, preventing edge damage and simplifying transfer to the next process (e.g., corner taping or case wrapping). This eliminates the manual sorting and handling that often cause scratches or misalignment in finished boxes.

Maintenance overhead is reduced by design. The flatbed die‑cutting method subjects components to less lateral stress than rotary systems, extending machine life. Centralized lubrication and accessible service points simplify routine upkeep, ensuring consistent performance over long production runs.

Safety is integrated into the automation. With no manual intervention during cutting, operators are protected from moving parts and high‑pressure zones. Safety guards and sensors further enhance protection, ensuring compliance with international workplace standards.

Energy efficiency supports sustainable operations. Despite its 20 kW power rating, the machine's optimized drive system minimizes energy waste. For high‑volume facilities, this helps control utility costs while maintaining peak productivity.

For rigid box manufacturers, the HXGDC1100 is more than a die cutter—it is a strategic asset. By combining full automation, nick‑free cutting, and industrial‑grade durability, it transforms greyboard processing from a bottleneck into a streamlined, high‑margin production stage.
