Boost Binding Productivity with the Plastic Spiral Forming Machine

In the world of document binding, plastic spirals remain one of the most popular and versatile options. They allow books, calendars, manuals, and reports to open flat, making them ideal for frequent use. The Plastic Spiral Forming Machine is engineered to meet the growing demand for high‑quality spirals by automating the entire production process—from raw wire to finished coil—with minimal operator involvement.

Plastic Spiral Forming Machine

The production workflow begins with automatic wire feeding, where PVC, PP, or PET wire is drawn into the system. The wire passes through a water tank heating system, which softens it to the optimal forming temperature. This heated wire is then guided through a precision mold, shaping it into a perfectly formed spiral. Finally, the spiral is cooled to lock in its shape and ensure consistent diameter throughout the length.

One of the standout features of this machine is its dual stainless‑steel insulated water tanks. These tanks not only maintain stable heating and cooling conditions but also improve energy efficiency by minimizing heat loss. This design reduces operating costs while ensuring that every spiral meets strict quality standards.

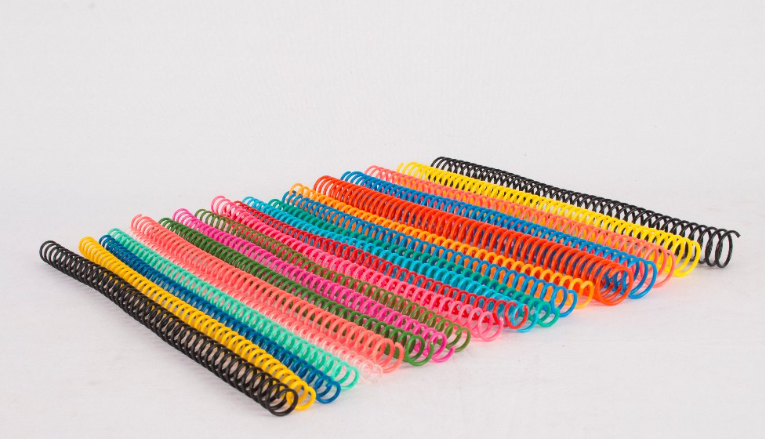

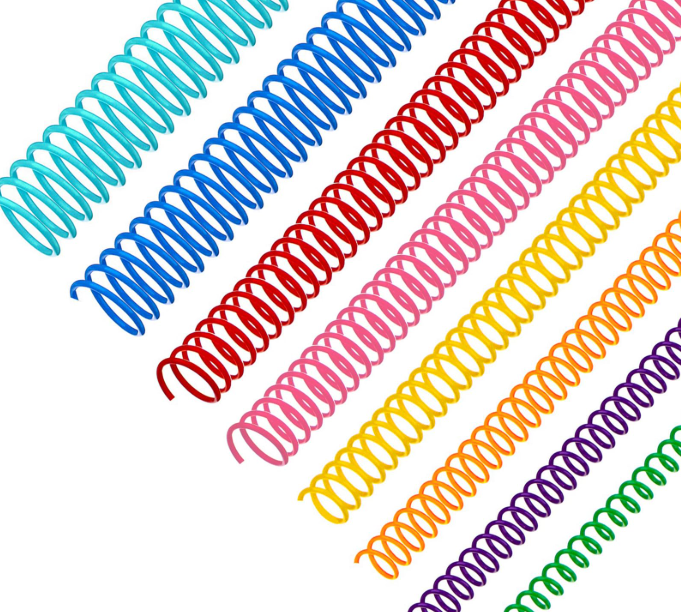

Flexibility is another major advantage. By simply changing molds, operators can produce spirals in a wide range of sizes—from 3/16 inch up to 2 inches in inner diameter. This adaptability makes the machine suitable for diverse applications, including office stationery, school supplies, corporate reports, wall calendars, and promotional booklets.

Speed is where the Plastic Spiral Forming Machine truly excels. With a forming speed of 500–1200 loops per minute, it can produce thousands of spirals per hour. This high throughput is essential for manufacturers supplying large volumes to print shops, binderies, and stationery wholesalers.

Operation is simplified through a touchscreen control interface, which allows operators to set parameters, monitor performance, and make adjustments with ease. The intuitive design reduces training time and minimizes the risk of errors, ensuring consistent output even for less experienced staff.

Compact and efficient, the machine measures 3000×1000×1200mm, weighs 200kg, and operates on a 220V/50Hz power supply with a 1kW motor. Its modest footprint makes it suitable for both large‑scale manufacturing plants and smaller production workshops.

For businesses in the printing, binding, and stationery industries, the Plastic Spiral Forming Machine offers a reliable, high‑speed, and cost‑effective way to produce premium‑quality binding spirals that meet the demands of modern customers.
