What is End Sheet Gluing Machine

High Speed End Sheet Gluing Machine is a specialized piece of equipment designed for the efficient gluing of book blocks and end sheets. This machine is essential in the bookbinding process, ensuring that the end sheets are securely attached to the book blocks, enhancing the durability and aesthetic appeal of the final product.

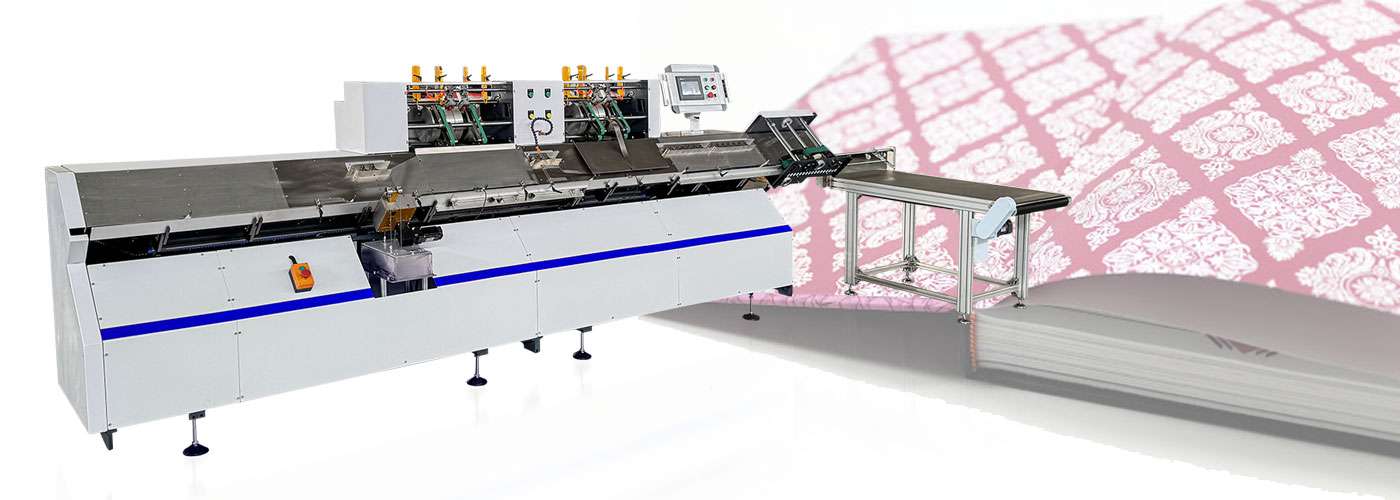

High Speed End Sheet Gluing Machine

Key Features

Manual and Automatic Feeding

High Speed End Sheet Gluing Machine operates with a combination of manual and automatic feeding mechanisms. Book blocks are fed manually, while the end sheets are fed automatically, one by one. This dual feeding system ensures a smooth and efficient gluing process.

Cold Glue Application

The machine uses cold glue for gluing, which is both environmentally friendly and cost-effective. The amount of glue can be easily controlled, ensuring that the end sheets are securely attached without any excess glue.

Precision Alignment

The machine is equipped with guide elements that align the end sheets with the top edge of the book block. This precision alignment ensures that the glue is applied accurately, resulting in a professional finish.

Pressing Station

After the glue is applied, the book block is forwarded to a pressing station where the end sheets are pressed against the book block. This pressing process ensures that the glue sets properly, creating a strong bond between the end sheets and the book block.

Optical Sensors

The machine is equipped with optical sensors to detect any missing pages. This feature helps in maintaining the quality and integrity of the final product by ensuring that no pages are missed during the gluing process.

Pincer Arm

The machine uses a pincer arm to transfer the paper or books. This mechanism ensures that the books are handled gently and accurately, reducing the risk of damage during the gluing process.

Automatic Book Endsheet to Endsheet Gluing Machine for Hardcover and notebook

Technical Specifications

High Speed End Sheet Gluing Machine offers a range of technical specifications that cater to different production requirements:

1. Max Book Size: 450×310mm (W×L)
2. Min Book Size: 155×100mm (W×L)
3. Book Thickness: 5-30mm
4. Speed: 30 books per minute
5. Voltage: 380V/50Hz
6. Power: 3.5kW
7. Weight: 1200kg
8. Dimensions: 5500×1800×1700mm

High-Speed End Sheet Gluing Machine

Applications

High Speed End Sheet Gluing Machine is ideal for a variety of applications in the bookbinding industry, including:

1. Book Production: Essential for the production of high-quality books, ensuring that the end sheets are securely attached to the book blocks.
2. Manual and Automatic Feeding: Suitable for both manual and automated bookbinding processes, making it versatile for different production environments.
3. Cold Glue Application: Ideal for environments where the use of cold glue is preferred for its environmental and cost benefits.

High Speed End Sheet Gluing Machine is a powerful tool for anyone involved in bookbinding. Its combination of manual and automatic feeding, precision alignment, and efficient gluing process makes it a valuable asset in the production of high quality books. Whether you are a small-scale bookbinder or a large-scale production facility, this machine offers the precision and efficiency required to produce professional results.
